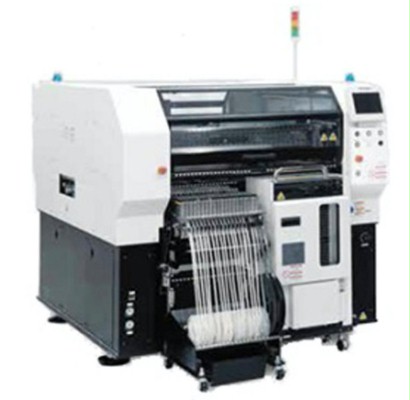

Panasonic VM102 SMT Pick and Place Machine
❙ Features & Benefits
| Product name | Panasonic VM102 SMT Pick and Place Machine | ||

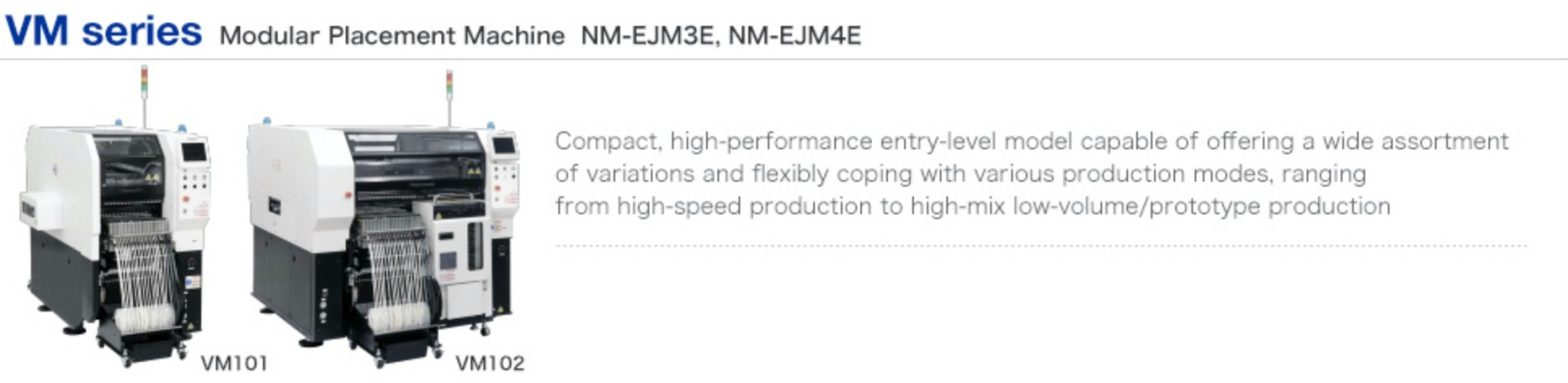

| Model | VM101 | VM102 | |
| PCB dimensions (mm) | L 50 × W 50 ~ L 330 × W 250 (Single-lane) | ||
| Electric source | 3-phase AC 200, 220, 380, 400, 420, 480 V | ||
| 1.3 kVA | |||
| Pneumatic source | 0.5 ~ 0.8 MPa | ||
| 100 L /min (A.N.R.) | 200 L /min (A.N.R.) | ||
| Dimensions (mm) *1 | W 830 *2 × D 1 969 *3 × H 1 500 | W 1 515 × D 2 070 *3 × H 1 500 | |
| Mass |
1 500 kg (Front : Fixed supply unit, Rear : Fixed supply unit without cutting unit) |
1 910 kg (Front : Fixed supply unit plus tray, Rear : Fixed supply unit without cutting unit) |
|
|
Component supply |
Taping | Tape : 4 ~ 56 / 72 / 88 / 104 mm | |
| Max. 80 components *4 (4/8 mm tape) | Max.160 components *4 (4/8 mm tape) | ||
| Stick | Max.20 *5 | Max.40 *5 | |
| Tray | Max.20 | Max.20 | |
