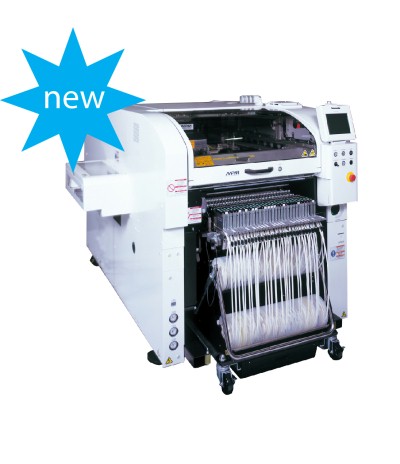

Panasonic SMD Pick and Place Machine
❙ Introduce of Panasonic SMD Pick and Place Machine
❙ Features & Benefits
Product name | Panasonic SMD Pick and Place Machine | ||||
Model | NPM-D3 | NPM-W2 | NPM-TT2 | NPM-W2S | |
Concept |
Dual-gantry, multi-head, process-driven module |
Dual-gantry, multi-head, process-driven module |
Dual-gantry, multi-head, process-driven module |
Single-gantry, multi-head, process-driven module |
|
Drive system | High-accuracy, low-maintenance, linear-motor driven gantry(s) system | ||||
Component alignment | Multi-recognition digital camera | ||||
Head design options | Inline array of 16, 12, 8, 3 and 2(D3) nozzle heads | ||||
Applicable heads | 16, 12, 8, 2 | 16, 12, 8, 3 | 8, 3 | 16, 12, 8, 3 | |
Board dimensions (Single lane) | L 510mm x W 590mm |
L 750mm x W 550mm 1200mm long PCB opt |
L 510mm x W 590mm |
L 750mm x W 550mm 1200mm long PCB opt |
|
Board dimensions (Dual lane) |
L 510mm x W 300mm L 510mm x W 550mm *1 |
L 750mm x W 260mm L 750mm x W 510mm *1 *2 |
L 510mm x W 300mm L 510mm x W 550mm *1 |
L 750mm x W 260mm L 750mm x W 260mm *1 *2 |
|
Placement accuracy | Chip | ±25μ Cpk ≥ 1.0 *4 | ±25μ Cpk ≥ 1.0 *4 | ±40μ Cpk ≥ 1.0 | ±25μ Cpk ≥ 1.0 *4 |
QFP | ±30μ Cpk ≥ 1.0 | ±30μ Cpk ≥ 1.0 | ±30μ Cpk ≥ 1.0 | ±30μ Cpk ≥ 1.0 | |
Throughput | Ideal | Up to 84,000 CPH | Up to 77,000 CPH | Up to 36,000 CPH | Up to 38,500 CPH |
IPC9850 | 63,300 CPH (1608C) *3 | 59,200 CPH (1608C) *3 | 8,300 CPH (208 QFP) *3 | 30,000 CPH (1608C) *3 | |
Component range | Min | 03015 microchip *4 | 03015 microchip *4 | 0402 microchip | 03015 microchip *4 |
Max | 100mm x 90mm | 150mm x 25mm | 150mm x 25mm | 150mm x 25mm | |
Height | 28mm | 30mm | 30mm | 30mm | |
Special height | - | 40mm | - | 40mm | |
Insertion force | .5N ~ 50N | .5N ~ 100N | .5N ~ 100N | .5N ~ 100N | |
Feeder capacity | Reels w/ no tray feeder | 68 | 120 | 120 | 120 |
Reels w/ tray tower | 24 | 86 | 86 | 86 | |
Reels w/ twin tower | N/A | 60 | N/A | 60 | |
Reels w/ 2 tray towers | N/A | N/A | 52 | N/A | |
Trays w/ tray tower | 20 | 20 | 20 | 20 | |
Trays w/ twin or 2 tray towers | N/A | 40 | 40 | 40 | |
Facilities | Electric | Voltage: 3 Phase AC 200/220 ±10V; AC 380 400 420 480V ±20V Frequency: 50/60 Hz | |||
2.7KVA | 2.8KVA | 2.5KVA | 2.0KVA | ||
Peak current 30A @ 200V | Peak current 40A @ 200V | Peak current 38A @ 200V | Peak current 22A @ 200V | ||
Pneumatic | .5 ~ .8MPa, 100L/min | .5 ~ .8MPa, 200L/min | .5 ~ .8MPa, 200L/min | .5 ~ .8MPa, 200L/min | |
Mass | 1900kg w/ 2 carts | 2850kg w/ 2 carts | 3090kg w/ 2 carts | 2850kg w/ 2 carts |
❙ Company Profile
ETA is the SMT machine supplier with professional 25-year-experienced sales and after sales team, providing SMT solutions including pick and place machine, reflow oven, SMT stencil printer, SMT line and wave soldering machine.
We also is the partner of JUKI pick and place machine and Hanwha/Samsung pick and place machine, can provide the best SMT technical services and accessories support for JUKI, Hanwha/Samsung, YAMAHA, PANASONIC brands.
Successful Experience:
Eta's Customer In 35 Countries Around the World
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
5. We Can Solve Any Question About SMT
❙ ETA SMT Machine Exhibition
❙ ETA SMT Machine Certificate
❙ ETA Global Service
❙ Customers' Feedback
❙ FAQ
![Pick and Place Machine](/res/44270508/jxres/202005/20200513144430729.jpg)
If you could not find any similar items you want, you may send some photos to us etasmt@foxmai.com. because our catalog and website haven't included all of our products.
