High Speed Panasonic NPM W2 Placement Machine
❙ Panasonic NPM W2 Features & Benefits
High speed Panasonic surface mounter Panasonic placement, Panasonic NPM VF, Panasonic NPM W2 with 77000CPH, component range 03015 microchip to 150mm x 25mm
| Product name |
High Quality SMT Placement Pick n Place Machine NPM-W2S |
||||
| Model | NPM-D3 | NPM-W2 | NPM-TT2 | NPM-W2S | |
| Concept |
Dual-gantry, multi-head, process-driven module |
Dual-gantry, multi-head, process-driven module |
Dual-gantry, multi-head, process-driven module |
Single-gantry, multi-head, process-driven module |
|
| Drive system | High-accuracy, low-maintenance, linear-motor driven gantry(s) system | ||||
| Component alignment | Multi-recognition digital camera | ||||
| Head design options | Inline array of 16, 12, 8, 3 and 2(D3) nozzle heads | ||||
| Applicable heads | 16, 12, 8, 2 | 16, 12, 8, 3 | 8, 3 | 16, 12, 8, 3 | |
| Board dimensions (Single lane) | L 510mm x W 590mm |
L 750mm x W 550mm 1200mm long PCB opt |
L 510mm x W 590mm |
L 750mm x W 550mm 1200mm long PCB opt |
|
| Board dimensions (Dual lane) |
L 510mm x W 300mm L 510mm x W 550mm *1 |
L 750mm x W 260mm L 750mm x W 510mm *1 *2 |
L 510mm x W 300mm L 510mm x W 550mm *1 |
L 750mm x W 260mm L 750mm x W 260mm *1 *2 |
|
| Placement accuracy | Chip | ±25μ Cpk ≥ 1.0 *4 | ±25μ Cpk ≥ 1.0 *4 | ±40μ Cpk ≥ 1.0 | ±25μ Cpk ≥ 1.0 *4 |
| QFP | ±30μ Cpk ≥ 1.0 | ±30μ Cpk ≥ 1.0 | ±30μ Cpk ≥ 1.0 | ±30μ Cpk ≥ 1.0 | |
| Throughput | Ideal | Up to 84,000 CPH | Up to 77,000 CPH | Up to 36,000 CPH | Up to 38,500 CPH |
| IPC9850 | 63,300 CPH (1608C) *3 | 59,200 CPH (1608C) *3 | 8,300 CPH (208 QFP) *3 | 30,000 CPH (1608C) *3 | |
| Component range | Min | 03015 microchip *4 | 03015 microchip *4 | 0402 microchip | 03015 microchip *4 |
| Max | 100mm x 90mm | 150mm x 25mm | 150mm x 25mm | 150mm x 25mm | |
| Height | 28mm | 30mm | 30mm | 30mm | |
| Special height | - | 40mm | - | 40mm | |
| Insertion force | .5N ~ 50N | .5N ~ 100N | .5N ~ 100N | .5N ~ 100N | |

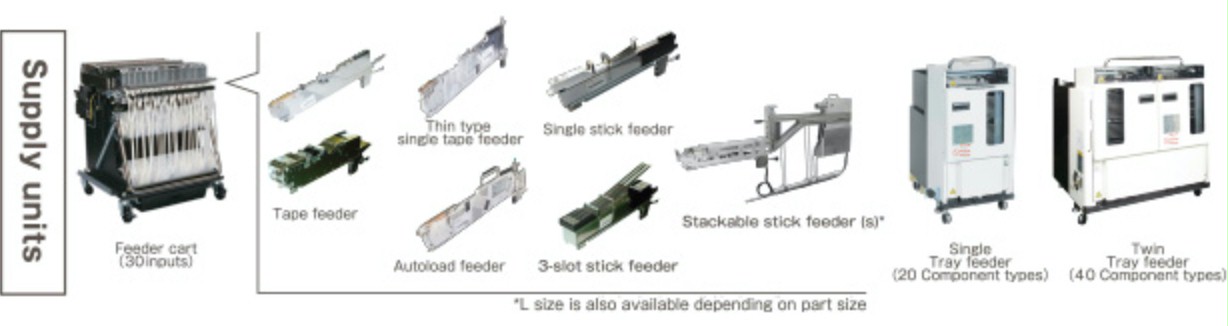

| Feeder capacity | Reels w/ no tray feeder | 68 | 120 | 120 | 120 |
| Reels w/ tray tower | 24 | 86 | 86 | 86 | |
| Reels w/ twin tower | N/A | 60 | N/A | 60 | |
| Reels w/ 2 tray towers | N/A | N/A | 52 | N/A | |
| Trays w/ tray tower | 20 | 20 | 20 | 20 | |
| Trays w/ twin or 2 tray towers | N/A | 40 | 40 | 40 | |
| Facilities | Electric | Voltage: 3 Phase AC 200/220 ±10V; AC 380 400 420 480V ±20V Frequency: 50/60 Hz | |||
| 2.7KVA | 2.8KVA | 2.5KVA | 2.0KVA | ||
| Peak current 30A @ 200V | Peak current 40A @ 200V | Peak current 38A @ 200V | Peak current 22A @ 200V | ||
| Pneumatic | .5 ~ .8MPa, 100L/min | .5 ~ .8MPa, 200L/min | .5 ~ .8MPa, 200L/min | .5 ~ .8MPa, 200L/min | |
| Mass | 1900kg w/ 2 carts | 2850kg w/ 2 carts | 3090kg w/ 2 carts | 2850kg w/ 2 carts | |
